Description:

The Daley Alloy 3 is your go‑to all‑mountain 29er — playful, capable, and built for long days in the dirt. With 150/140 mm of Marzocchi suspension, a durable alloy frame, Shimano Cues 10‑speed drivetrain, and a KS dropper, it’s ready to climb, carve, and send without the gimmicks.

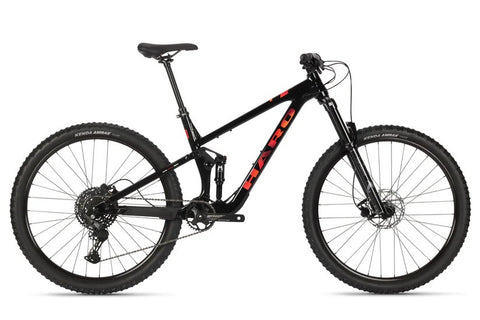

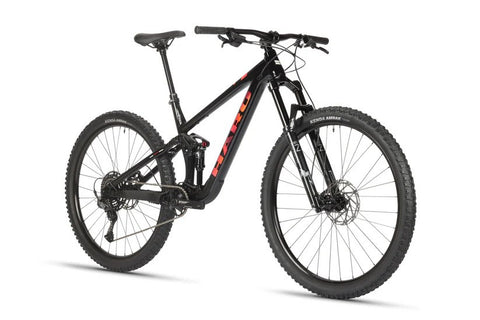

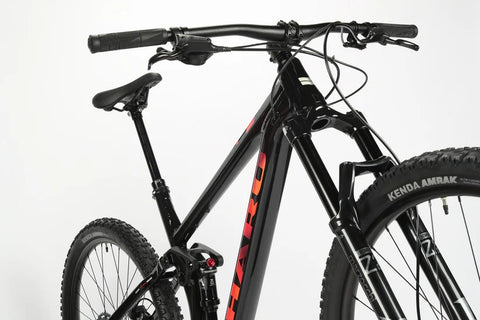

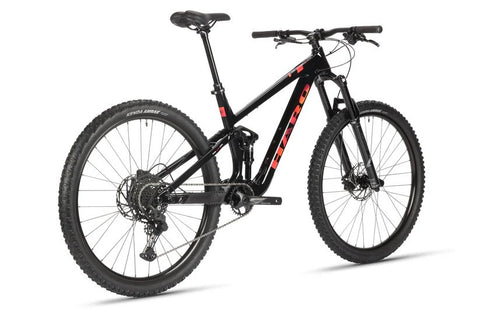

Haro Daley Alloy 3 Extra Large – Marzocchi Z2 / Inline R, Shimano Cues 10‑Speed, KS Dropper

Named after one of our favorite trail networks, the Daley Alloy 3 is built for riders who want a straightforward, capable, all‑mountain machine. No gimmicks — just a dialed suspension platform, modern geometry, and components chosen for reliability and fun on every ride.

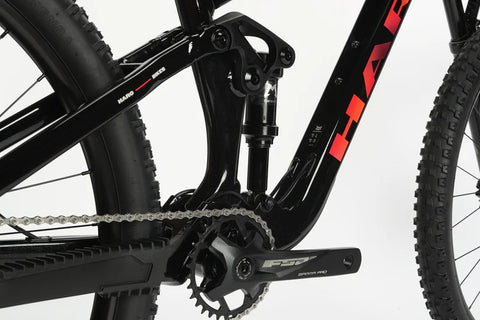

The Daley’s exclusive alloy frame is paired with a 150 mm Marzocchi Bomber Z2 fork and 140 mm Marzocchi Inline R rear shock, custom‑tuned for this platform. The long‑front‑triangle, short‑rear‑end layout keeps the bike stable at speed while staying playful through tight turns and technical singletrack.

With Shimano Cues 10‑speed shifting, Tektro Gemini hydraulic brakes, and a Kind Shock I900 dropper, the Daley Alloy 3 is ready for everything from after‑work laps to full‑day missions.

Key Features

• Haro Daley alloy full‑suspension frame with UDH hanger


• Marzocchi Bomber Z2 fork – 150 mm travel, Rail/Sweep adjust


• Marzocchi Inline R rear shock – 140 mm travel


• Shimano Cues 10‑speed drivetrain


• Tektro Gemini 2‑piston hydraulic brakes with 180 mm rotors


• Kind Shock I900 dropper post (size‑specific travel)


• 29" wheels (S = 27.5") with double‑wall alloy rims


• CST L‑CAT 2.35" tires


• Modern all‑mountain geometry: 64.5° head angle, 78° seat angle

Specifications

Frameset

• Frame: Haro Daley alloy full‑suspension, tapered head tube, 148 mm Boost, UDH


• Fork: Marzocchi Bomber Z2, 150 mm, Rail/Sweep adjust, Kabolt 110 × 12 mm, 44 mm offset


• Shock: Marzocchi Inline R, 140 mm


• Colors: Trans Black / Amber, Matte Stone Grey


• Weight: 37.7 lbs (16.98 kg, size L)

Drivetrain

• Crankset: FSA Gamma Pro 165 mm, 32T


• Chain: KMC E‑Glide


• Bottom Bracket: FSA Mega EXO 73 mm


• Rear Derailleur: Shimano Cues Shadow Plus 10‑speed


• Shifter: Shimano Cues Rapid Fire 10‑speed


• Cassette: Shimano Cues 11–48T

Wheels

• Tires: CST L‑CAT DK27 2.35"


• Rims: Double‑wall alloy I25, 32H


• Hubs: Alloy, sealed bearings – 110×15 front / 148×12 rear

Braking System

• Brakes: Tektro Gemini 2‑piston hydraulic, 180 mm rotors


• Brake Levers: Tektro Gemini

Components

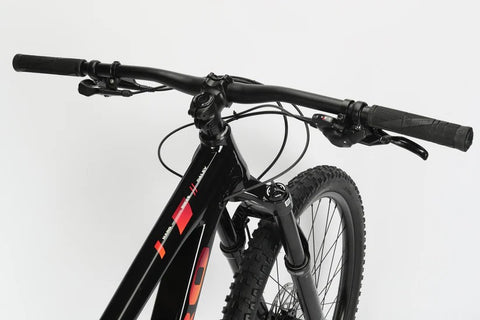

• Handlebar: 6061‑T6 alloy riser, 800 mm, 20 mm rise


• Stem: 6061‑T6 forged alloy, 45 mm


• Headset: FSA Orbit 1.5E ZS / NO.57E


• Grips: WTB Trail II


• Saddle: WTB Volt Medium, steel rails


• Seatpost: Kind Shock I900 (S‑150 mm, M‑170 mm, L‑200 mm, XL‑200 mm)


• Seat Clamp: 3D‑forged 6061 alloy, 38.9 mm

Geometry & Sizing

The Daley Alloy 3 is built for riders who want a tough, capable, all‑mountain bike that climbs well, descends confidently, and stays playful everywhere in between. Just grab it and go ride.
