Description:

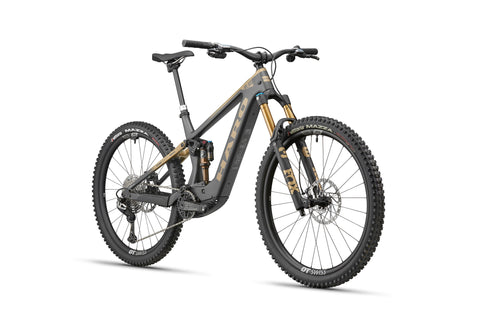

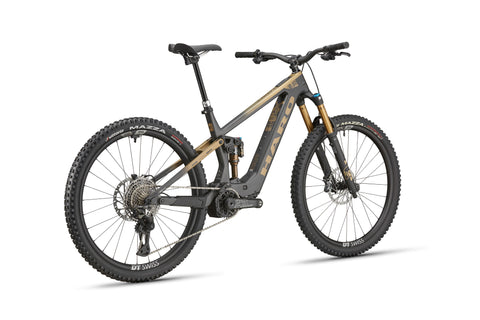

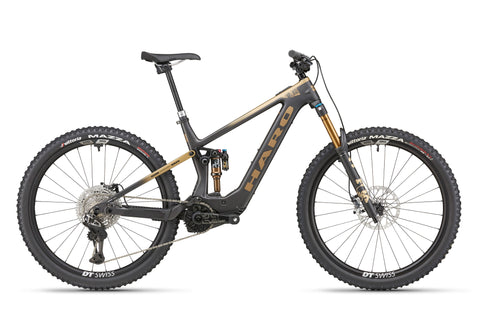

 Haro eDaley Top Shelf Carbon E-MTB 29" Medium

The Haro eDaley Carbon – Top Shelf sets a new benchmark for lightweight, high‑performance e‑MTBs. With a 17.6 kg system weight, Bosch SX power, FOX Factory suspension, and Shimano XTR Di2 wireless shifting, it delivers unmatched agility, precision, and control on technical climbs, fast flow, and demanding descents.

The Haro eDaley Carbon – Top Shelf Medium represents a new generation of e-mountain bikes. Built for riders who demand maximum performance without sacrificing a natural riding feel, it combines a lightweight carbon chassis, Bosch’s Performance Line SX drive unit, and top-tier components into a 17.6 kg trail weapon.

Whether you're tackling technical climbs, carving fast flow trails, or dropping into challenging descents, the eDaley Carbon rides lightly, precisely, and directly. It provides support when you need it—and stays unobtrusive when you want to rely on pure bike handling.

Ultra Light. Ultra Capable.

Every detail of the eDaley Carbon – Top Shelf has been engineered for weight reduction without compromising performance. The carbon frame, Bosch SX motor, and premium component selection create an e-MTB that is efficient uphill and playful downhill.

17.6 kg—you feel it on every climb, every turn, every jump.

MC² = Maximum Control

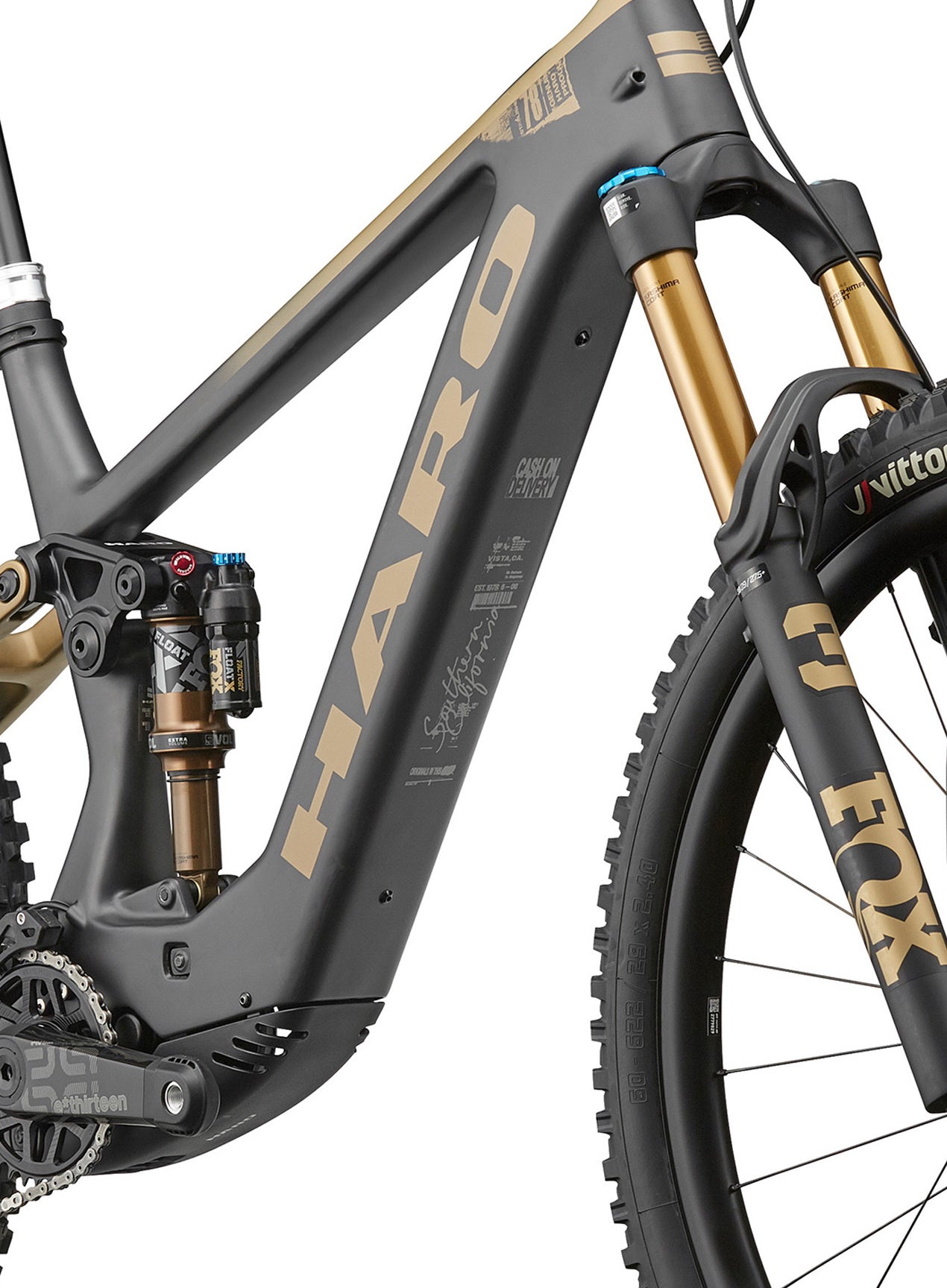

The suspension package is uncompromising: a FOX 36 FLOAT Factory fork with GRIP X damping, Kashima coating, and 150 mm of travel up front, paired with a FOX FLOAT X Factory rear shock for maximum traction and control.

The golden Kashima coating minimizes friction, enhances small-bump sensitivity, and delivers an exceptionally smooth ride feel—even under high stress.

More grip. More control. More speed.

Precision Under Pressure

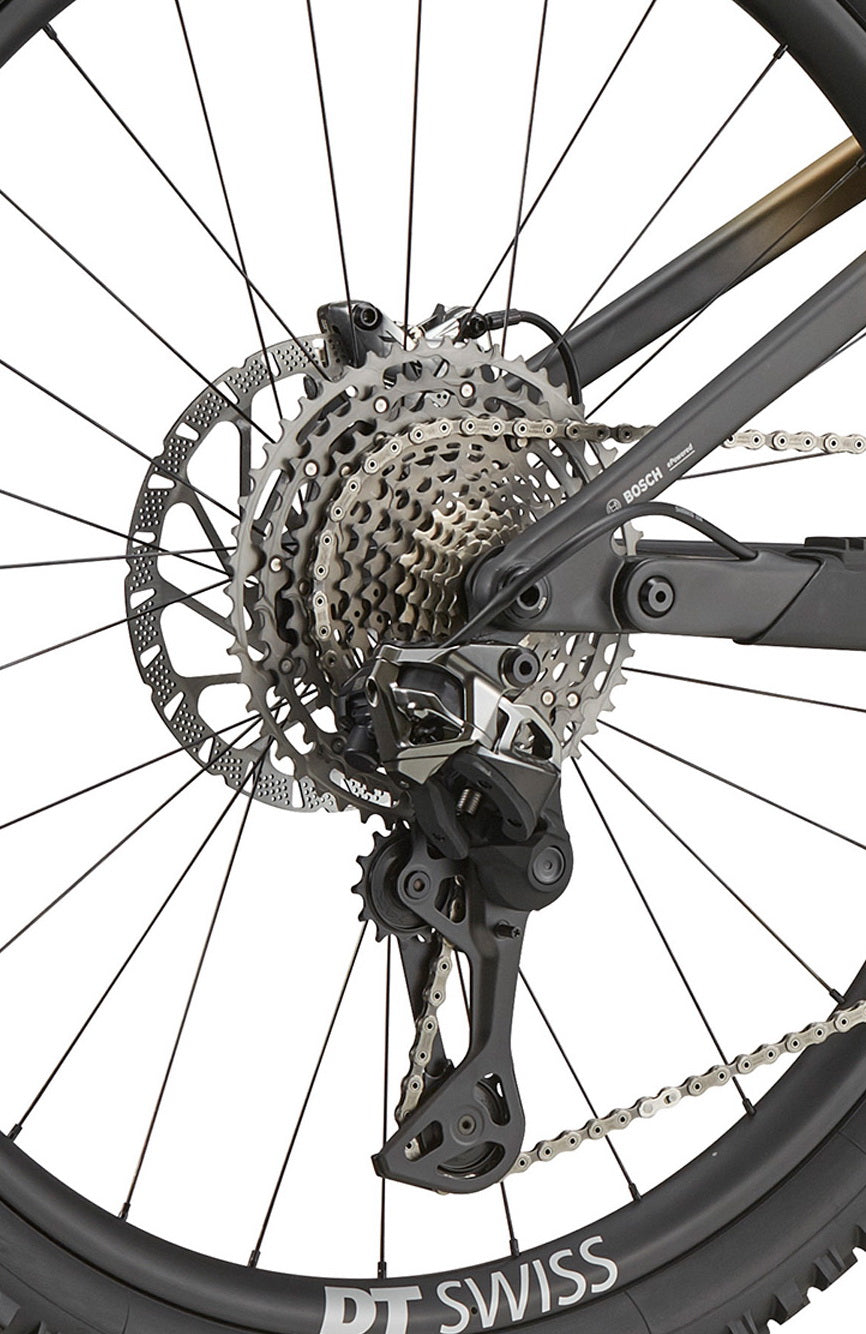

The Shimano XTR Di2 Wireless 12-speed drivetrain delivers lightning-fast, precise gear changes—even under full load. No cables. No delays. No compromises.

Braking is handled by TRP HD-M9040 EVO Pro 4-piston brakes, offering massive stopping power and excellent modulation thanks to thick 2.3 mm rotors.

• Frame: eDaley Carbon Full Suspension, 140/150 mm travel, tapered head tube, 148 mm Boost, UDH hanger


• Motor: Bosch Performance Line SX (32 km/h )


• Battery: Bosch 400 Wh integrated


• Fork: FOX 36 FLOAT Factory, 150 mm travel, GRIP X damper, Kashima coating


• Rear Shock: FOX FLOAT X Factory, 185×52.5 mm, EVOL LV


• Drivetrain: Shimano XTR Di2 Wireless, 12-speed


• Brakes: TRP HD-M9040 EVO Pro, 4-piston, 2.3 mm rotors


• Wheelset: DT Swiss XMC 1501 SPLINE® ONE Carbon


• Tires: Vittoria Mazza / Martello Enduro 2.4, G2.0 compound


• Dropper Post: KS LEV Circuit Wireless, 200 mm (170 mm on size M)


• Weight: 17.6 kg

Geometry Highlights

Modern trail geometry with a slack 64.5° head angle, steep 78° seat angle, and wheel sizes optimized per frame size (27.5” S / 29” M–XL) for balanced handling and confidence on technical terrain.

Less weight. More feel. No excuses.
