Description:

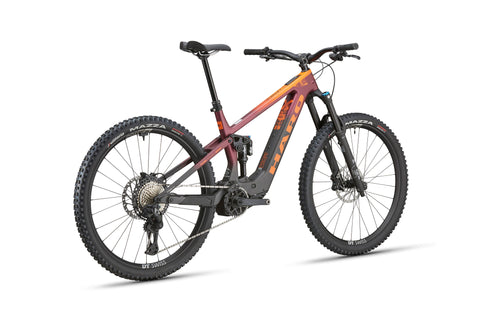

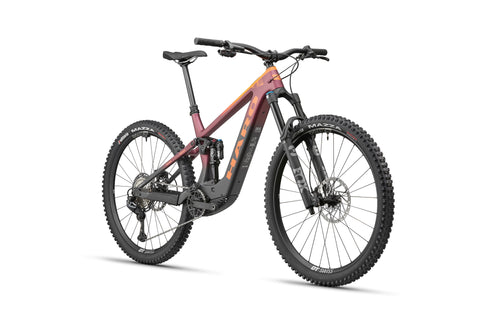

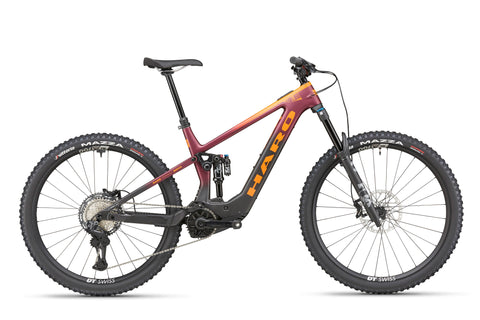

" Specials : HARO eDaley Carbon 1  29"  Large

The Haro eDaley Carbon 1 blends lightweight carbon construction with Bosch SX power and wireless Shimano XT Di2 shifting for a fast, natural, and highly capable trail experience. With 140/150 mm travel, FOX suspension, and TRP DH‑R EVO brakes, it delivers pure trail performance without unnecessary frills.

The Haro eDaley Carbon 1 Large brings modern eMTB technology together with a lightweight, agile carbon chassis to deliver pure trail performance. With 140/150 mm of travel, Bosch’s Performance Line SX drive unit, and wireless Shimano XT Di2 shifting, this bike is built for riders who want precision, capability, and a natural riding feel.

The eDaley Carbon frame mirrors the geometry of the top-tier model—light, stiff, and progressively tuned for modern trail riding. The Bosch Performance Line SX motor provides powerful yet natural support with a minimal system weight, keeping the bike lively and responsive. The compact 400 Wh integrated battery maintains excellent balance and agility on technical terrain.

Controlled. Confident. Capable.

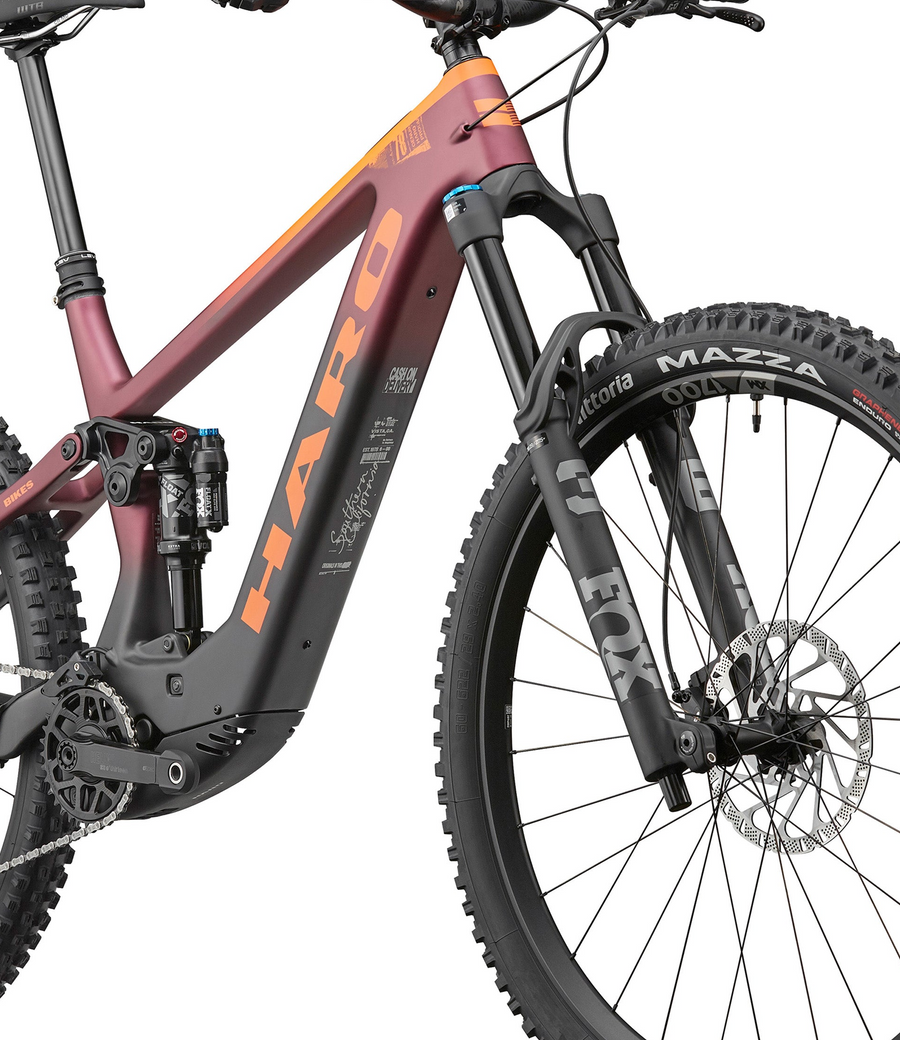

The FOX 36 FLOAT fork with 150 mm travel delivers stiffness and precision for aggressive trail riding, while the FOX FLOAT X rear shock offers a wide damping range with a 3-position adjustment for quick transitions between climbing efficiency and descending control.

High stiffness, sensitive response, and deep reserves ensure confidence at speed and stability on demanding lines.

Wireless Precision. DH-Level Braking.

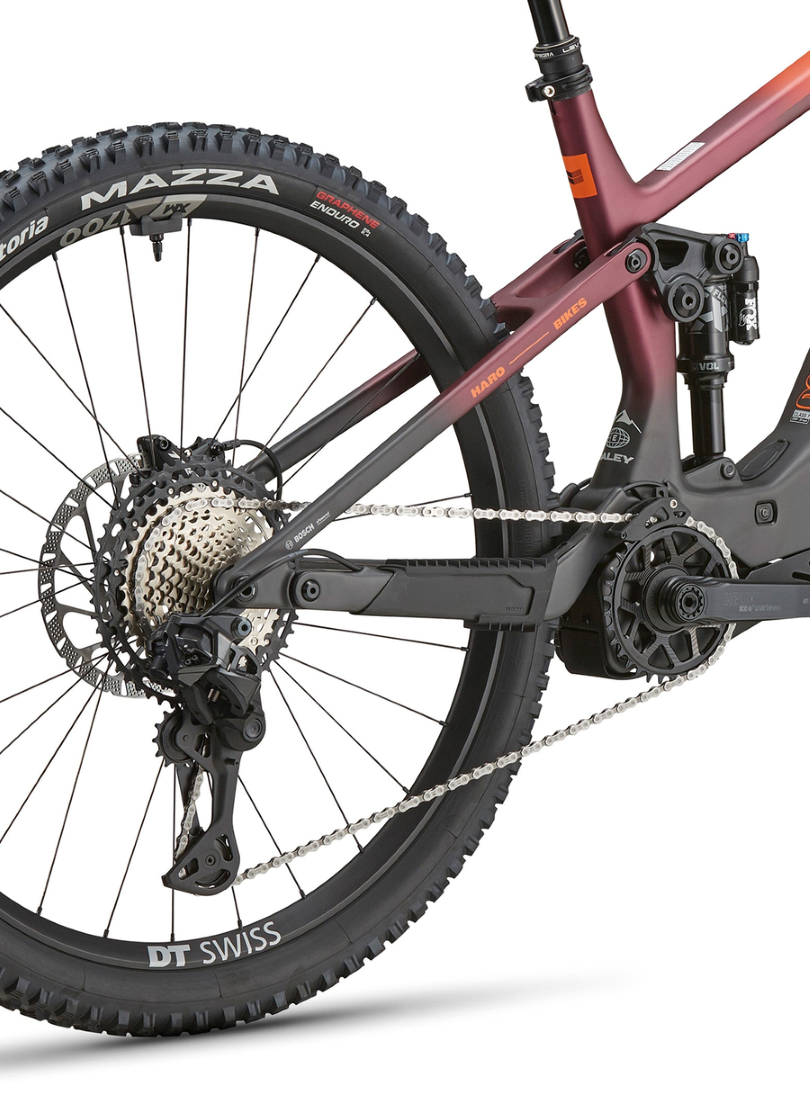

The Shimano Deore XT Di2 Wireless 12-speed drivetrain provides lightning-fast, cable-free shifting—even under heavy load. Clean, precise, and reliable.

Braking is handled by TRP DH-R EVO 4-piston brakes with thick 2.3 mm rotors, delivering massive stopping power and excellent modulation for steep, technical descents.

• Frame: eDaley Carbon Full Suspension, 140/150 mm travel, tapered head tube, 148 mm Boost, UDH hanger


• Motor: Bosch Performance Line SX (32 km/h )


• Battery: Bosch 400 Wh integrated


• Fork: FOX 36 FLOAT, 150 mm travel, GRIP damper, 3-position adjust


• Rear Shock: FOX FLOAT X, 185×52.5 mm, EVOL LV


• Drivetrain: Shimano Deore XT Di2 Wireless, 12-speed


• Brakes: TRP DH-R EVO, 4-piston, 2.3 mm rotors


• Wheelset: DT Swiss XM 1700 SPLINE®, tubeless ready


• Tires: Vittoria Mazza / Martello Enduro 2.4, G2.0 compound


• Dropper Post: KS LEV Integra, up to 200 mm travel (size-dependent)

Geometry Highlights

Modern trail geometry with a slack 64.5° head angle, steep 78° seat angle, and wheel sizes optimized per frame size (27.5” S / 29” M–XL) for balanced handling and confidence on technical terrain.

Premium technology. Pure trail performance.
